Drizzle Studio

Getting Started with Drizzle Studio

Launch Studio

# Start Drizzle Studio
pnpm db:studio

# Output:
# Drizzle Studio is running on http://localhost:4983

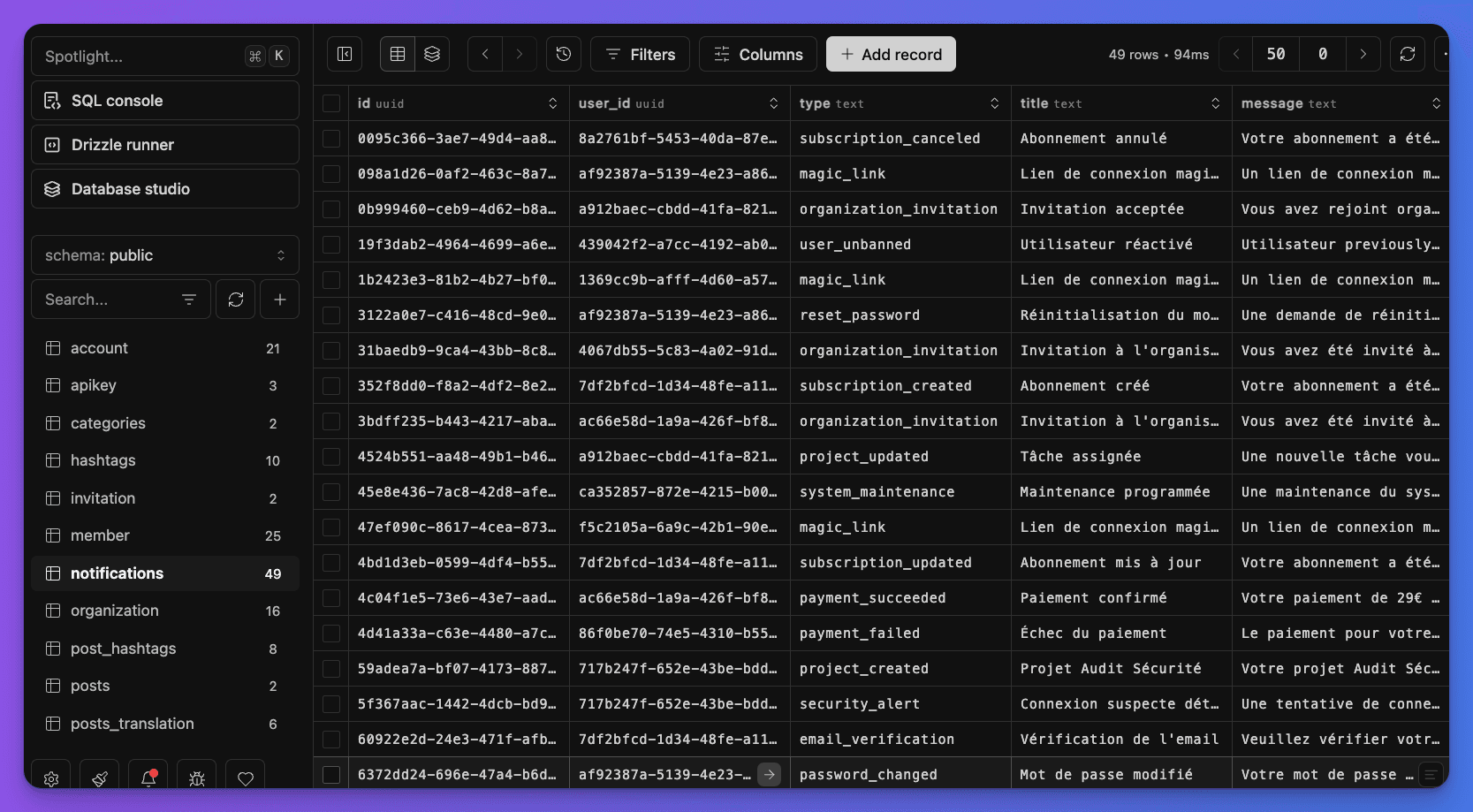

Studio Interface Overview

• Left Sidebar: Table list with search and filtering
• Main Panel: Data grid with editing capabilities
• Query Tab: SQL query interface
• Schema Tab: Visual schema explorer
• Relationships: Interactive relationship diagram

Browsing and Filtering Data

Table Navigation

📊 Tables (in sidebar)
├── 👥 users (45 rows)
├── 🏢 organizations (12 rows)
├── 👤 members (67 rows)
├── 📝 projects (23 rows)
├── ✅ tasks (156 rows)
└── 📧 notifications (234 rows)

Search: "user"
Results:
├── 👥 users
├── ⚙️ user_settings
└── 🔔 user_notifications

Filter examples:
- email LIKE '%@gmail.com'
- created_at > '2024-01-01'
- role = 'admin'
- name IS NOT NULL

Data Grid Features

• Sort: Click column headers to sort ascending/descending
• Resize: Drag column borders to adjust width
• Hide/Show: Right-click headers to hide/show columns
• Search: Use the search bar to find specific values

• Select: Click rows to select (supports multi-select with Ctrl/Cmd)
• Edit: Double-click cells to edit values inline
• Insert: Use the "+" button to add new rows
• Delete: Select rows and use Delete key

Editing Data

Inline Editing

Before: John Doe
After:  John Smith ✏️

✅ Valid: "user@example.com" (email format)
❌ Invalid: "not-an-email" (constraint violation)

Adding New Records

1. Click the "Add Row" button (+)
2. Fill in the required fields
3. Studio auto-generates UUIDs for ID fields
4. Foreign key fields show dropdown with valid options
5. Save with Enter or click outside the row

id: [auto-generated UUID]
name: "Jane Developer"
email: "jane@company.com"
role: "user" [dropdown: user, admin, moderator]
created_at: [auto-set to now()]

Bulk Operations

• Ctrl+Click (Cmd+Click) for individual selection
• Shift+Click for range selection
• Ctrl+A (Cmd+A) to select all visible rows

• Delete: Select rows → Delete key → Confirm
• Export: Select rows → Export button → Choose format (JSON, CSV)
• Duplicate: Select row → Duplicate button → Modify values

Relationship Visualization

Exploring Relations

users table
├── → members (user_id)
│   └── → organizations (organization_id)
│       └── → projects (organization_id)
│           └── → tasks (project_id)
├── → user_settings (user_id)
└── → notifications (user_id)

Relationship Panel

• One-to-Many: User → Multiple Organizations
• Many-to-Many: Posts ↔ Hashtags (through junction table)
• One-to-One: User → User Settings

• Click related record counts to filter
• Hover relationships to highlight connections
• Right-click to create new related records

SQL Query Interface

Custom Queries

-- Find all admin users
SELECT name, email, created_at
FROM users
WHERE role = 'admin'
ORDER BY created_at DESC;

-- Count users by role
SELECT role, COUNT(*) as count
FROM users
GROUP BY role;

-- Users with their organizations
SELECT
  u.name as user_name,
  u.email,
  o.name as org_name,
  m.role as member_role
FROM users u
JOIN members m ON u.id = m.user_id
JOIN organizations o ON m.organization_id = o.id
WHERE u.active = true;

-- Project completion statistics
SELECT
  p.name as project,
  COUNT(t.id) as total_tasks,
  COUNT(CASE WHEN t.status = 'completed' THEN 1 END) as completed,
  ROUND(
    COUNT(CASE WHEN t.status = 'completed' THEN 1 END) * 100.0 / COUNT(t.id),
    2
  ) as completion_percentage
FROM projects p
LEFT JOIN tasks t ON p.id = t.project_id
GROUP BY p.id, p.name
ORDER BY completion_percentage DESC;

Query Features

Studio Development Workflow

Database Seeding

# Run seed command
pnpm db:seed

# Then open Studio to verify:
pnpm db:studio

• Users: Check demo accounts (admin@example.com, user@example.com)
• Organizations: Verify sample organizations with members
• Projects: Review sample projects and tasks
• Content: Check blog posts with translations

Schema Exploration

Testing Data Changes

1. Note current data state in Studio
2. Make your code changes
3. Test the application
4. Verify data changes in Studio
5. Reset database if needed: pnpm db:reset-seed

Debugging with Studio

Finding Data Issues

-- Find tasks without projects
SELECT t.*
FROM tasks t
LEFT JOIN projects p ON t.project_id = p.id
WHERE p.id IS NULL;

-- Find members without users
SELECT m.*
FROM members m
LEFT JOIN users u ON m.user_id = u.id
WHERE u.id IS NULL;

-- Find duplicate emails
SELECT email, COUNT(*)
FROM users
GROUP BY email
HAVING COUNT(*) > 1;

-- Find duplicate organization names
SELECT name, COUNT(*)
FROM organizations
GROUP BY name
HAVING COUNT(*) > 1;

-- Check for NULL values in required fields
SELECT COUNT(*) as null_emails
FROM users
WHERE email IS NULL;

-- Verify foreign key integrity
SELECT
  m.id,
  m.user_id,
  m.organization_id
FROM members m
LEFT JOIN users u ON m.user_id = u.id
LEFT JOIN organizations o ON m.organization_id = o.id
WHERE u.id IS NULL OR o.id IS NULL;

Data Verification

SELECT
  'users' as table_name, COUNT(*) as count FROM users
UNION ALL
SELECT
  'organizations', COUNT(*) FROM organizations
UNION ALL
SELECT
  'projects', COUNT(*) FROM projects;

-- Check for recent changes
SELECT table_name, COUNT(*) as count
FROM (
  SELECT 'users' as table_name, created_at FROM users
  WHERE created_at > NOW() - INTERVAL '1 hour'
  UNION ALL
  SELECT 'projects', created_at FROM projects
  WHERE created_at > NOW() - INTERVAL '1 hour'
) recent_data
GROUP BY table_name;

Advanced Features

Data Export and Import

• JSON: Complete data structure with nested relationships
• CSV: Flat table format for spreadsheet applications
• SQL: INSERT statements for data migration

# Export specific tables
# Select rows in Studio → Export button → Choose format

# Example exports:
users_export.json        # User data with relationships
projects_export.csv      # Project data for analysis
tasks_backup.sql         # SQL INSERT statements

Query Templates

-- Template: Active users by role
SELECT role, COUNT(*) as count
FROM users
WHERE active = true
  AND created_at > '{{start_date}}'
GROUP BY role
ORDER BY count DESC;

-- Template: Project completion report
SELECT
  o.name as organization,
  p.name as project,
  COUNT(t.id) as total_tasks,
  COUNT(CASE WHEN t.status = 'completed' THEN 1 END) as completed
FROM organizations o
JOIN projects p ON o.id = p.organization_id
LEFT JOIN tasks t ON p.id = t.project_id
WHERE p.created_at > '{{project_start_date}}'
GROUP BY o.id, o.name, p.id, p.name;

Performance Monitoring

-- Check table sizes
SELECT
  schemaname,
  tablename,
  attname,
  n_distinct,
  correlation
FROM pg_stats
WHERE schemaname = 'public'
ORDER BY n_distinct DESC;

-- Analyze query performance
EXPLAIN ANALYZE
SELECT u.*, COUNT(p.id) as project_count
FROM users u
LEFT JOIN members m ON u.id = m.user_id
LEFT JOIN organizations o ON m.organization_id = o.id
LEFT JOIN projects p ON o.id = p.organization_id
GROUP BY u.id;

Studio Configuration

Environment Variables

# .env.local
DATABASE_URL="postgresql://user:pass@host:port/db"

# Optional: Custom Studio port
DRIZZLE_STUDIO_PORT=4983

Studio Options

# Start on different port
pnpm db:studio --port 5000

# Start in verbose mode
pnpm db:studio --verbose

# Start with specific config
pnpm db:studio --config ./custom-drizzle.config.ts

Best Practices

Studio Best Practices

Data Safety

• Only connect to development/staging databases
• Use read-only database users for data exploration
• Always backup before making bulk changes
• Test data migrations on copies of production data

Performance Tips

• Use filters to limit data displayed
• Avoid loading tables with millions of rows
• Use custom queries instead of browsing large tables
• Consider pagination for data review
